Chapter 8 Summarizing Data: Plots

Now that we have some data to work with, and we have learned about the data at the most basic level, our next tasks is to visualize the data. Often, a proper visualization can illuminate features of the data that can inform further analysis.

We will look at four methods of visualizing data that we will use throughout the course:

  • Histograms
  • Barplots
  • Boxplots
  • Scatterplots

8.1 Histograms

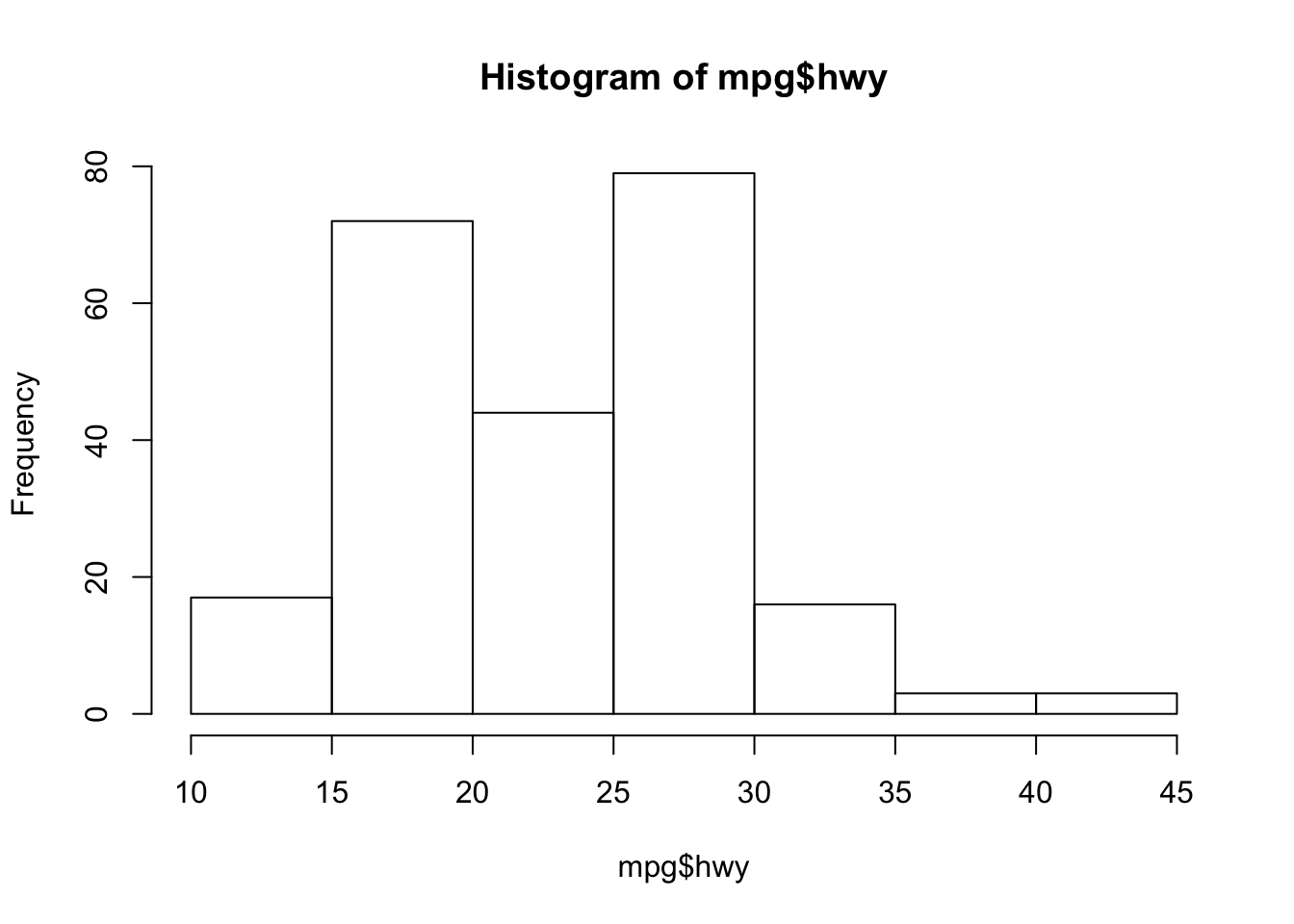

When visualizing a single numerical variable, a histogram will be our go-to tool, which can be created in R using the hist function.

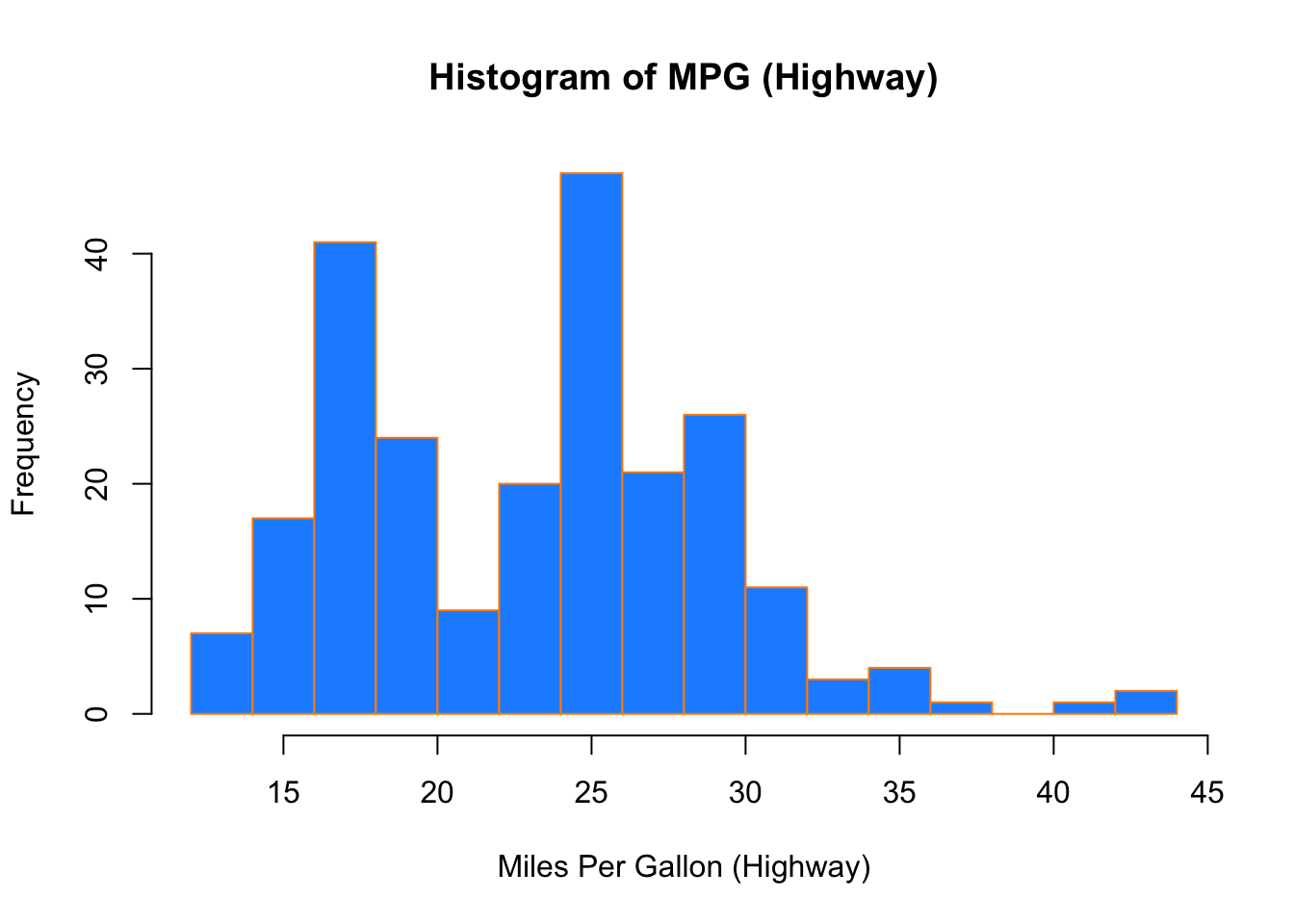

The histogram function has a number of parameters which can be modified to make the plot look much prettier.

     xlab   = "Miles Per Gallon (Highway)",
     main   = "Histogram of MPG (Highway)",
     breaks = 12,
     col    = "dodgerblue",
     border = "darkorange")

Importantly, you should always be sure to label your axes and give the plot a title. The argument breaks is specific to hist(). Entering an integer will give a suggestion to R for how many bars to use for the histogram. By default R will attempt to intelligently guess a good number of breaks, but as we can see here, it is sometimes useful to modify this yourself. Use the ?hist to read the documentation for the hist function to see a full list of these parameters.

8.2 Barplots

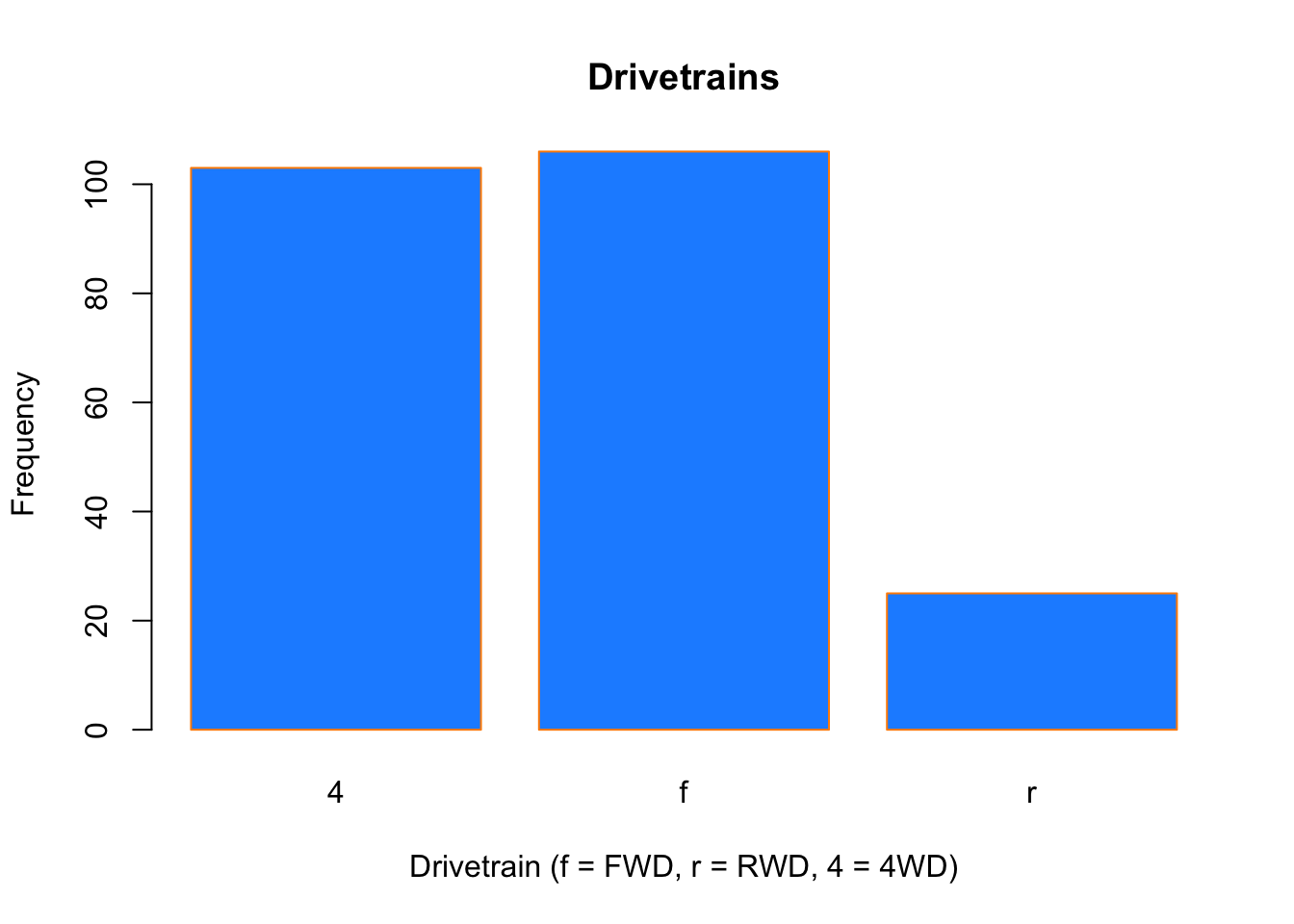

Somewhat similar to a histogram, a barplot can provide a visual summary of a categorical variable, or a numeric variable with a finite number of values, like a ranking from 1 to 10.


        xlab   = "Drivetrain (f = FWD, r = RWD, 4 = 4WD)",
        ylab   = "Frequency",
        main   = "Drivetrains",
        col    = "dodgerblue",
        border = "darkorange")

8.3 Boxplots

To visualize the relationship between a numerical and categorical variable, we will use a boxplot. In the mpg dataset, the drv variable takes a small, finite number of values. A car can only be front wheel drive, 4 wheel drive, or rear wheel drive.

## [1] "f" "4" "r"

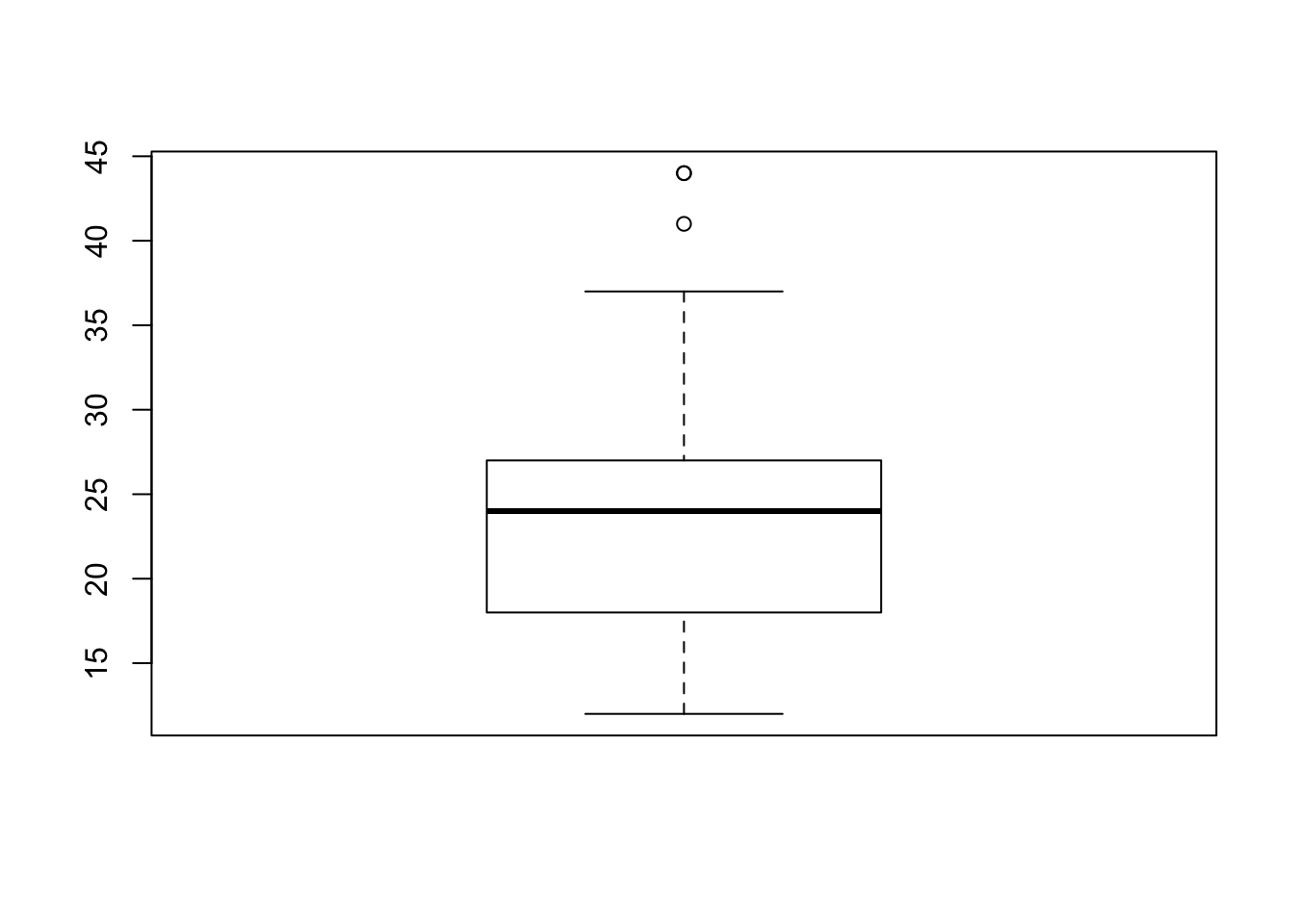

First note that we can use a single boxplot as an alternative to a histogram for visualizing a single numerical variable. To do so in R, we use the boxplot() function.


However, more often we will use boxplots to compare a numerical variable for different values of a categorical variable.

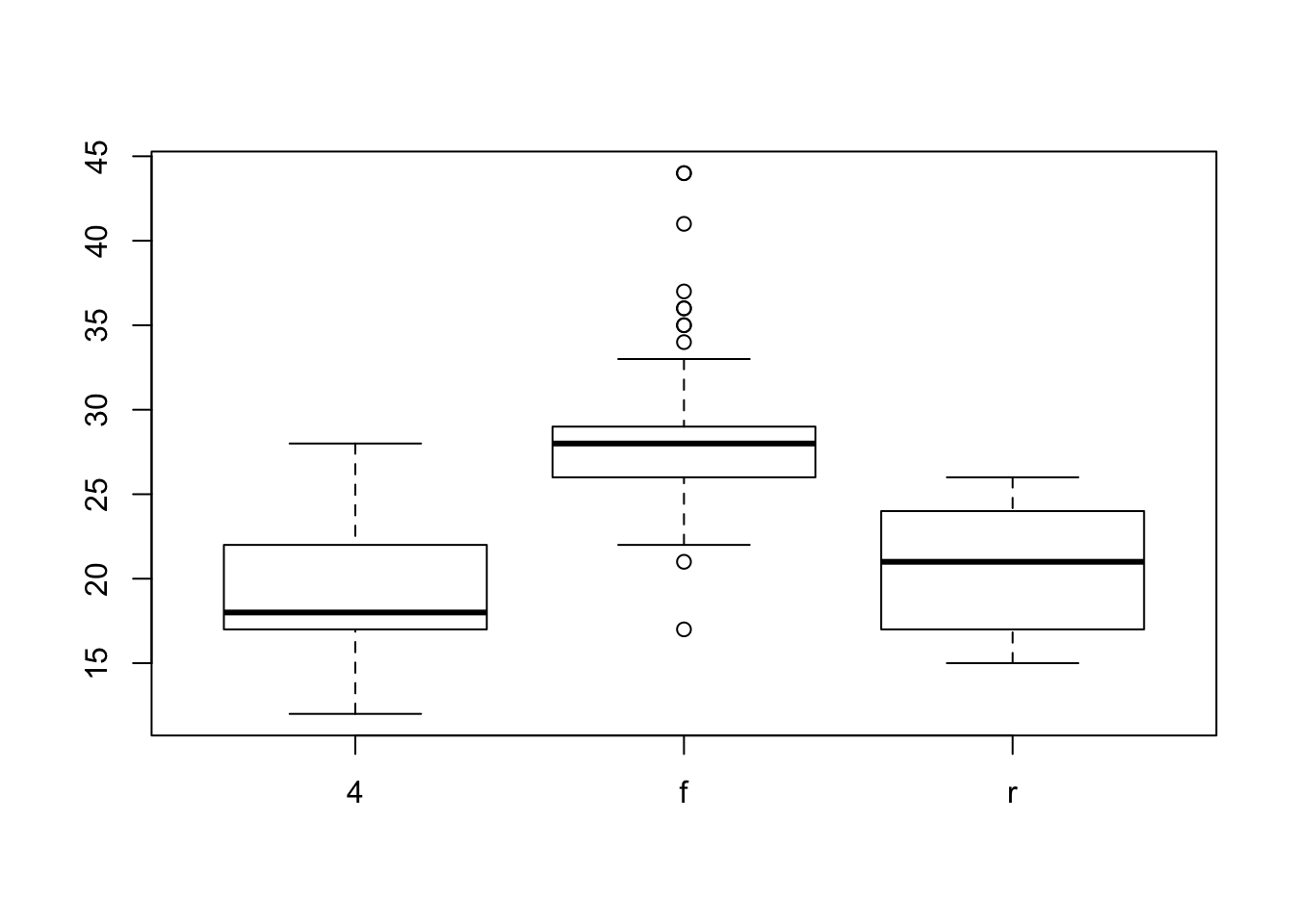

boxplot(hwy ~ drv, data = mpg)

Here we used the boxplot() command to create side-by-side boxplots. However, since we are now dealing with two variables, the syntax has changed. The R syntax hwy ~ drv, data = mpg reads “Plot the hwy variable against the drv variable using the dataset mpg.” We see the use of a ~ (which specifies a formula) and also a data = argument. This will be a syntax that is common to many functions we will use in this course.

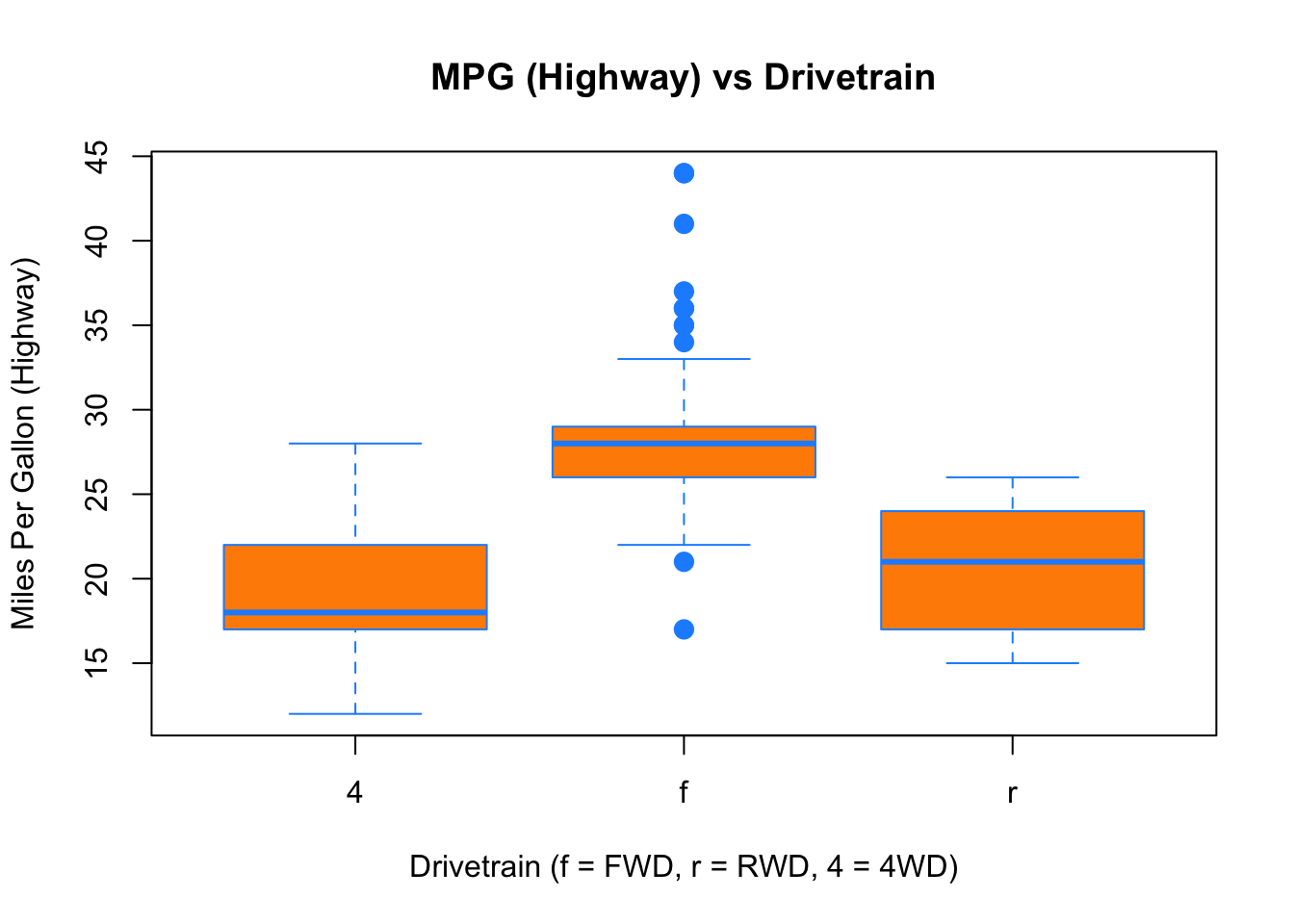

boxplot(hwy ~ drv, data = mpg,
     xlab   = "Drivetrain (f = FWD, r = RWD, 4 = 4WD)",
     ylab   = "Miles Per Gallon (Highway)",
     main   = "MPG (Highway) vs Drivetrain",
     pch    = 20,
     cex    = 2,
     col    = "darkorange",
     border = "dodgerblue")

Again, boxplot() has a number of additional arguments which have the ability to make our plot more visually appealing.

8.4 Scatterplots

Lastly, to visualize the relationship between two numeric variables we will use a scatterplot. This can be done with the plot() function and the ~ syntax we just used with a boxplot. (The function plot() can also be used more generally; see the documentation for details.)

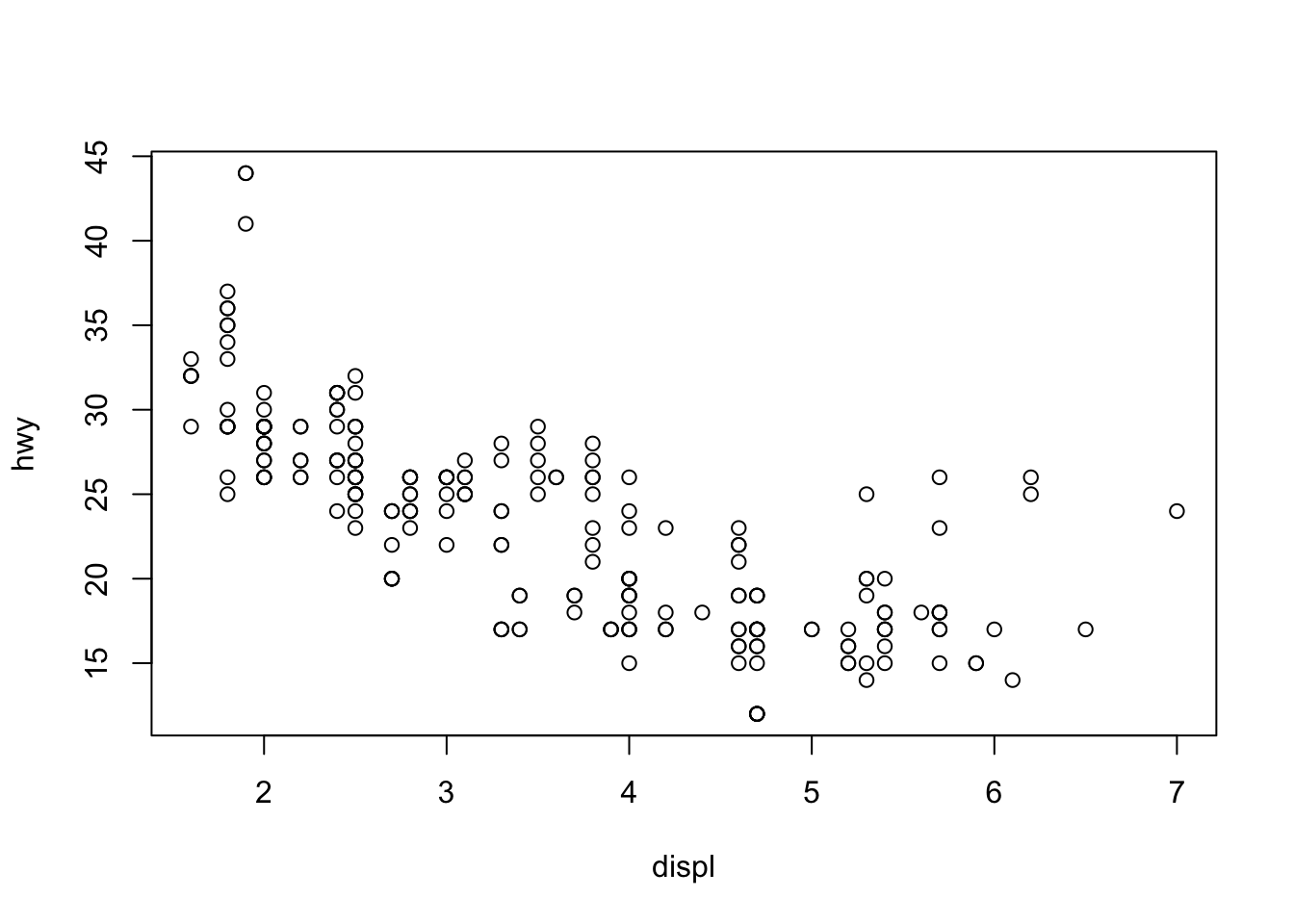

plot(hwy ~ displ, data = mpg)

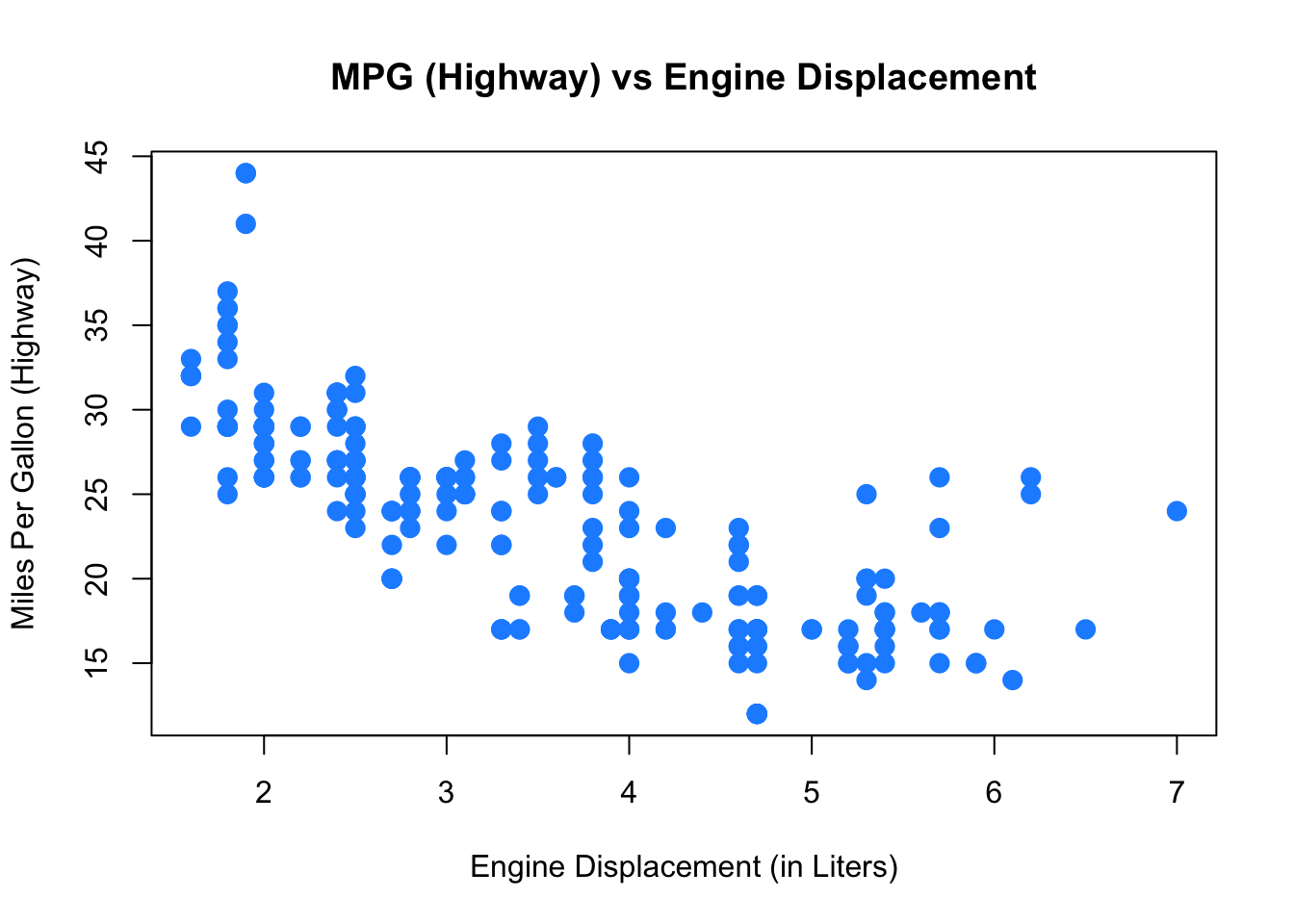

plot(hwy ~ displ, data = mpg,
     xlab = "Engine Displacement (in Liters)",
     ylab = "Miles Per Gallon (Highway)",
     main = "MPG (Highway) vs Engine Displacement",
     pch  = 20,
     cex  = 2,
     col  = "dodgerblue")
